How to Pick the Best Chilled Water System?
Imagine you mistakenly chose an undersized chilled water system for perishable food cooling. And the system runs longer and harder at full capacity to meet cooling demands.
Guess what? The system consumes excessive energy and often fails to maintain optimal food temperatures, affecting product quality. Also, due to overworking, the chiller’s components wear out faster.
So, how can you prevent energy waste and protect product quality? By selecting a properly sized chilled water system that meets your specific cooling needs. This guide will discover how chilled water systems work, their types, and the key factors when selecting the best unit.
Understanding Chilled Water Systems
A chilled water system is a type of HVAC (Heating, Ventilation, and Air Conditioning) or process cooling system that uses chilled water as a medium to absorb and remove heat from a space, equipment, or industrial process.
Chilled water systems are an integral part of food industries where maintaining consistent temperatures is essential to preserve product quality and prevent spoilage.
Some common food industry that uses chilled water systems include:
- Food Processing and Manufacturing,
- Cold Storage and Warehousing,
- Beverage Production,
- Meat and Seafood Processing,
- Dairy Industry,
- Bakery and Confectionery,
- Ready-to-Eat and Processed Foods.

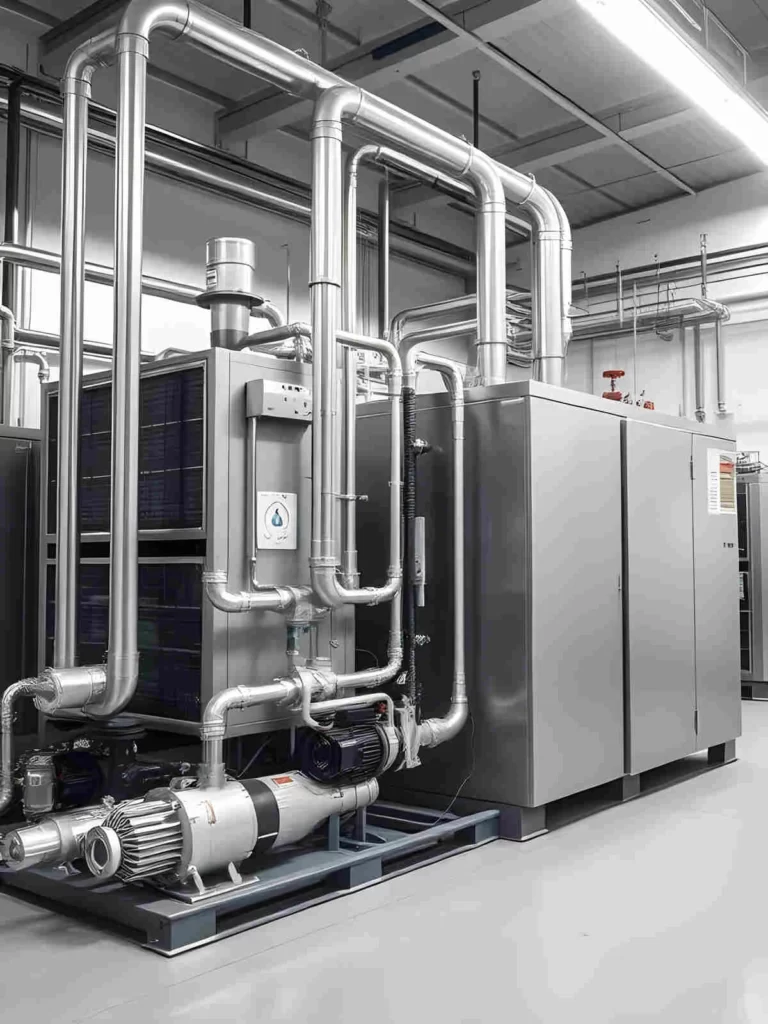

How a Chilled Water System Works
A chilled water system is an efficient cooling solution widely used in industrial facilities and food storage to ensure stable temperatures.
The system uses a chiller system to cool water to a low temperature usually between 40°F and 45°F (4°C to 7°C). The chilled water is circulated through a network of pipes, using pumps. From there, the cooled water reaches air handling units, (AHUs) or fan coil units (FCUs) and then back to the chiller for re-cooling.
When the chilled water flows through these units, it absorbs the heat from air or equipment, reducing the temperature of the space. Lastly, the warmed water returns to the chiller to remove heat, maintaining efficient temperature control in industrial facilities and food storage.

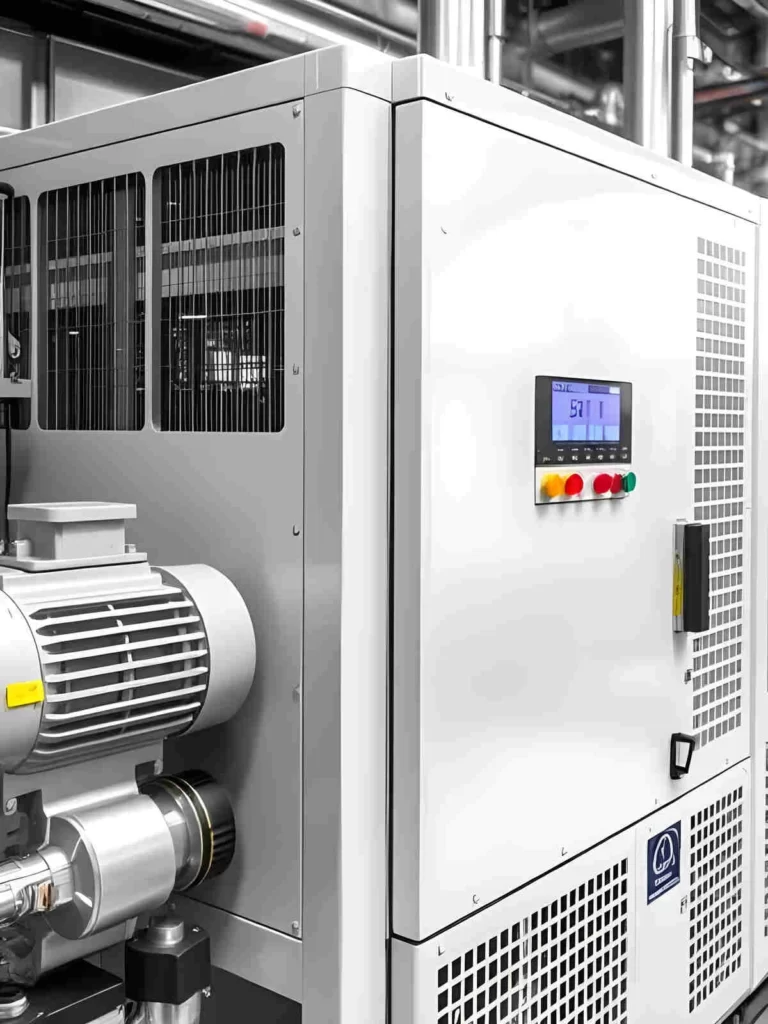

Components of a Chilled Water System
In the food industry applications, a chilled water system precisely controls standard temperature and maintains product quality and safety. Below are some important components of the system.
- Chiller Unit
- Chilled Water Pump
- Cooling Coils or Heat Exchangers
- Piping Network
- Air Handling Units (AHUs) or Fan Coil Units (FCUs)
- Cooling Tower (for Water-Cooled Chillers)
- Control System
Types of Chilled Water System
Chilled water systems are categorized based on their chiller and compressor types. Each type has its own benefits and limitations and works flexibly in food processing, storage, and manufacturing.
Based on Chiller Type:
There are two types of chilled water systems:
1. Water-cooled chillers
These chiller systems use water as a secondary refrigerant to remove heat from the process. They work by transferring the absorbed heat to water, which is then released into the atmosphere through a cooling tower.
These equipments can provide stable cooling performance and maintain precise temperature control based on the food processing requirement. Plus, they last longer than air-cooled chillers.
2. Air-cooled chillers
These refrigeration systems use outside air to remove heat from the refrigerant. By not using a cooling tower and water for heat release, they depend on fans to distribute air along condenser coils.
These chillers are easy to install and cost low as there is no need for water treatment.
Based on Compressor Type:
Chilled water systems are categorized into five types:
1. Centrifugal chillers
These are large-scale cooling systems designed to provide cooling for extensive spaces. They use centrifugal force and an impeller to compress refrigerant gas, increasing its pressure and temperature.
They have high efficiency, capacity, and a compact design. This makes them ideal for food processing facilities needing consistent cooling.
2. Scroll chillers
These chiller units use a scroll-shaped compressor containing two interleaving spiral-shaped scrolls. One scroll stays still, while the other moves around it to compress the refrigerant gas. This compression process cools water or other fluids, which then absorb heat from a space.
These chillers are compact in design, consume less energy, and work with low noise levels.
3. Reciprocating chillers
These system use piston-driven compressors to compress refrigerant gas. Like a car engine, the pistons move up and down within cylinders to pressurize the gas. This traditional technology is often selected for small to medium cooling applications.
Reciprocating chillers are more budget-friendly and easy to install and operate.
4. Screw chillers
These cooling equipment use two interlocking helical rotors (screws) to compress refrigerant gas. As the two screws rotate, they trap and compress the gas, reducing the volume of the refrigerant, and increasing its pressure and temperature.
Screw compressors can provide efficient cooling and handle operations with minimal downtime.
5. Vapor absorption chillers
Unlike traditional chillers, vapor absorption chillers (VACs) use heat instead of electricity to run the cooling process.
This system provides a sustainable cooling solution by using waste heat or renewable energy. Additionally, it consumes less electricity and reduces carbon emissions, making it a greener option.
Factors to Consider When Choosing a Chilled Water Unit
Choosing the perfect chilled water option ensures consistent temperature control and less energy consumption. However, business owners often choose the unsuitable option due to a lack of knowledge. Here are some key factors to keep in mind:
1. Cooling Capacity Requirements
Cooling capacity points to the amount of heat a chilled water unit can remove from a space used for cooling within a specific time. This capacity is measured in BTU/hr (British Thermal Units per hour), kW (kilowatts), or refrigeration tons. These values are directly influenced by evaporator performance during operation.
To ensure your unit offers sufficient cooling and assess the cooling capacity needed, you need to calculate the cooling load. Below are some factors to consider.
- Space Size: Larger space requires higher, and small space requires lower cooling capacities.
- Process Heat Generation: Industrial machines, ovens, and production lines often generate significant heat. Calculate the heat output of all operational equipment.
- Ambient Temperature: The outside temperature and humidity also impact the cooling system’s workload. In hotter areas, the unit works harder to maintain the desired temperatures.
Accurately calculating the cooling capacity requirement helps businesses maintain chillers with consistent temperatures while minimizing energy consumption. And, for large facilities, consulting an HVAC specialist can help you unlock peak performance and maximize energy efficiency.
2. Type of Chillers
Another crucial factor to consider is choosing the right chiller which depends on your cooling needs, budgets, and operational goals. As mentioned above, both water-cooled and air-cooled chillers provide consistent cooling through the refrigeration cycle. However, you must consider some factors discussed below:
- For Large-Scale: Choose a water-cooled chiller that uses water as the cooling medium and provides higher energy efficiency and longer lifespan. This makes them a perfect fit for industrial plants, data centers, or large commercial spaces to cool the air efficiently.
- For Smaller Spaces: Here an air-cooled chiller is a practical choice that is easier to install and requires less maintenance, and works fine in commercial kitchens, warehouses without air conditioning systems.
- Energy Efficiency: Consider centrifugal or screw chillers for large operations where efficient cooling is required. In medium-scale applications, scroll or reciprocating chillers are reliable. If your facility generates waste heat, a vapor absorption chiller can maximize energy use.
Budget and Space Constraints: Water-cooled chillers cost more upfront but save energy long-term, while air-cooled chillers are cheaper to install and save space.
3. Energy Efficiency
Businesses must consider energy efficiency as a key factor as it directly impacts long-term operating costs. While energy-efficient chillers may cost more upfront, they offer significant energy savings, reducing operational expenses.
Select a chiller with a high COP or EER for better energy performance. Opt for systems with Variable Speed Drives (VSDs) to adjust cooling based on demand, reducing electricity use.
4. Maintenance and Reliability
Maintenance and reliability ensure efficient performance and expand the system’s lifespan. Here are some maintenance and reliability tips:
- Opt for chillers with simple designs, such as scroll or screw compressors, as they have fewer moving components. This reduces the risk of mechanical failures and lowers maintenance costs.
- Ensure the manufacturer provides quick support, warranties, and skilled technicians for repairs. Also, consider modern chillers that identify optional issues in real-time with automated monitoring systems.
5. Budget and Lifecycle Costs:
Businesses should calculate both initial purchase price and lifecycle costs. This offers a clear picture of the long-term financial impact. The total cost involves:
- Initial Purchase and Installation Costs: The upfront cost of buying and installing the chiller.
- Energy Consumption: Energy consumption over its lifetime.
- Maintenance and Repairs: Regular servicing, part replacements, and unexpected repairs.
- Water Treatment (for Water-Cooled Systems): Extra costs for maintaining clean and efficient water flow.
Final Words
Choosing the right chilled water system is essential for ensuring your facility operates efficiently, provides optimal cooling performance, minimizes downtime, and extends equipment lifespan.
Therefore, business must consider key factors like cooling capacity, energy efficiency, chiller type, maintenance needs, and long-term expenses. This helps achieve reliable chilled water system performance. A well-selected system will meet your cooling needs while supporting sustainable operation.
